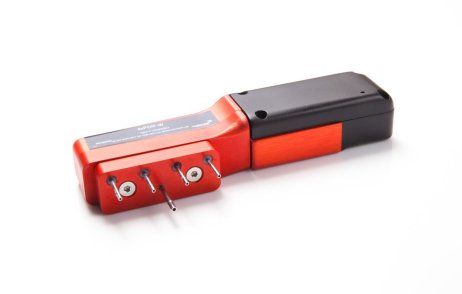

4xPDIFF-WS wireless aero pressure scanner

4xPDIFF-WS is a 4-channel differential pressure sensor. Being able to pair numerous wireless sensors to our generic GenWM tri-band receiver provides our clients the freedom to monitor areas where wired sensors are difficult to package.

Product Description

To complement our range of wireless aero pressure scanner we have introduced a NEW 4-channel differential pressure sensor. Being able to pair numerous wireless sensors to our generic GenWM tri-band receiver provides our clients the freedom to monitor areas where wired sensors are difficult to package. Dedicated for aerodynamic developments, the 4xPDIFF-WS wireless aero pressure scanner is available with pressure ranges from -350 to +350 mbar and brings high accuracy in a super-compact housing. The product is packaged with dimensions 101 x 36 x 18 mm. Providing 4 differential pressures with a single reference port, tubes are based on the standard Scanivalve interface (TUBN-040-055) for ease of installation. Powered by an easily replaceable 3.6 V 750 mAh battery and with an operating temperature of 5 to +85°C makes this sensor ideal for embedded testing.
