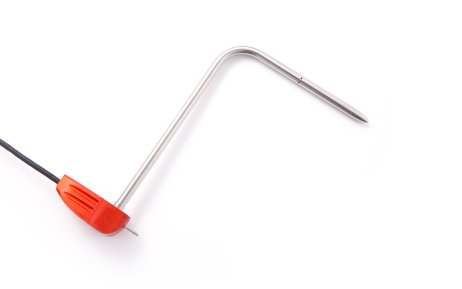

PI-6-TCK - 6 mm

High accuracy pitot and temperature sensor with built-in electronics delivering an output signal of 0 to 5 V.

Product Description

High accuracy pitot and temperature sensor with built-in electronics delivering an output signal of 0 to 5 V.

  • Variable tube height from 130 to 300 mm with optional static pressure port.
  • Air temperature measurement range from -40 to +150°C, Accuracy ± 0.25% FS and a Sensitivity of 25 mV.
  • Air speed is measured by integrating dynamic and static pressures. This measurement combined with load measurement (please refer to our document “Strain gauge bonding + amplifiers) enables aerodynamics to be enhanced.

The measuring range of 50 to 76 mbar means that all applications for vehicles are covered ( IRL, Nascar, Formula1, GP2, Formula3…) as well as certain phases where lower speeds are involved (car and motorbike preparation and settings…)
